RF24Gateway - Creating Hybrid IoT Networks using TCP/IP and RF24Network

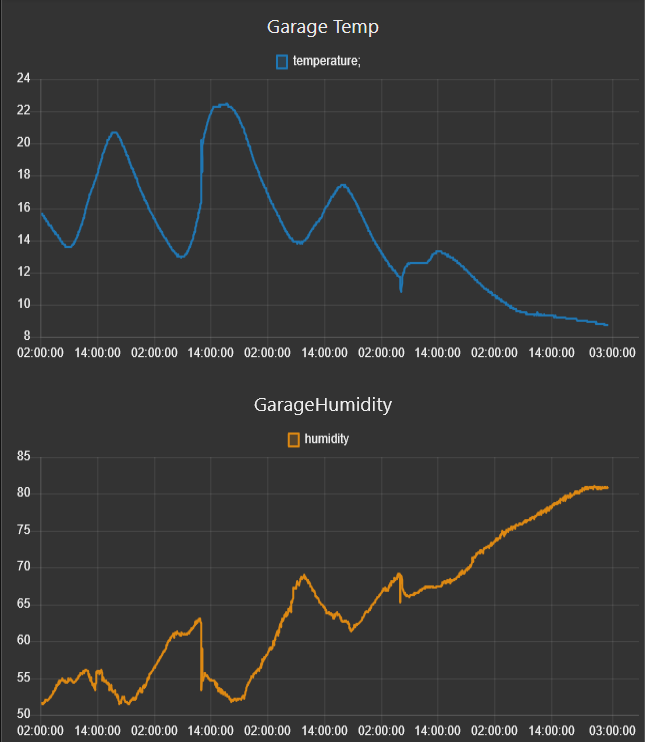

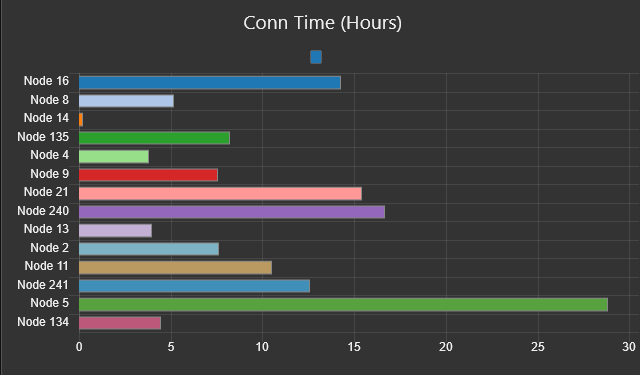

 RF24Gateway User Interface Example

RF24Gateway is a new complimentary library to RF24Ethernet, designed for RPi and Linux based devices with SPI and GPIO capabilities (BBB, Intel Edison, Galileo, etc).

The RF24Gateway library acts as a network/internet gateway, and allows Arduino/AVR based sensor nodes to interact with each other, the environment, and the world using TCP/IP and/or lower level RF24Network messages.

In short, it allows hybrid IoT networks to be created using Arduino and nrf24l01 modules. Some nodes are capable of internet or local network communication using standard protocols (TCP/IP) and/or RF24Network messages, while other nodes can communicate only at the network level, using only the lower layer RF24Network messaging.

Once RF24Gateway is configured, nodes can be controlled completely using standardized tools and protocols. Additional client examples have been added to demonstrate how to control and/or receive information from sensor nodes using standard tools and scripting methods via Bash, NodeJS and Python scripts. Any method of establishing a TCP connection can be used, with the examples generally using HTTP to some degree as well.

Libraries and code that utilizes RF24Network can utilize RF24Gateway in much the same way, since external data types (TCP/IP) are handled out of sight from the user. RF24Network is used exactly the same way, except that the gateway.update() function is called instead of network.update() or mesh.update(). The included examples demonstrate usage.

Note: RF24Gateway defaults to using a TUN interface with RF24Mesh enabled. RF24Ethernet examples have been updated to accommodate this.

Current Status:

April 2015: Near completion. Integrated fully with RF24Ethernet. Graphical (NCurses) interface example finalized.

Source Code:


Download (See documentation for installation info):

ENC28J60 Network Modules, Arduino and the Internet of Things (IoT):

An experiment, overview and analysis of TCP/IP networking with Arduino Ethernet

The module in question was sent to me by the friendly people at ICStation.com , in exchange for a review of the module itself.

Video Review:

ENC28J60 Mini Network Module:
  • 3.3V operation
  • Create a mini Arduino Web Server or Client
  • Plugs into your home router or modem just like a computer

    The uIP TCP/IP stack is software driven, while the ENC28J60 module handles the data mainly at the network (Ethernet) level. One main difference between UIPEthernet and the official Arduino Ethernet library is the need to keep the TCP/IP stack updated via software with the ENC28J60.


    The ENC28J60 was very easy to wire up, using the default SPI pins shown at http://arduino.cc/en/Reference/SPI along with the VCC and Ground pins.

    The device seems to work ok connected to the 3.3v output of the Arduino, but it seems best to use an external power supply or battery


    Two main libraries appear to be available: Ethercard and the UIPEthernet libraries. This post will focus on usage via UIPEthernet, since it shares a common API with the official Arduino Ethernet library.

    I am using the UIPEthernet library and examples found at: https://github.com/TMRh20/arduino_uip/tree/fix_errata12

    In attempting to utilize the modules and UIPEthernet for creating a simple webserver, I ran into a number of issues with data being sent or received incorrectly. Over a number of days, and benefiting from the information gained in building the RF24Ethernet library, I have been working to improve UIPEthernet, and also created some examples to demonstrate the issues and current usage.

    (A pull request has been made regarding these suggested changes to the main library)

    Overview of Library Changes (At the time of this post):
    • Introduce client.waitAvailable(); function  - Ensures the IP stack is processing incoming data while waiting for incoming data for a maximum defined duration in milliseconds: client.waitAvailable(3000);
    • Introduce Ethernet.update(); function - Allows user applications to ensure the IP stack is processing data while delaying or performing other tasks: Ethernet.update();
    • Perform additional processing of data while calling client.available();
    • Per testing, reduce max segment size (MSS) and the receive window to 511 bytes from 512 due to unidentified issue.
    • Reduce number of packets per socket to prevent data loss
    • Re-open the TCP window at timed intervals when data has not been sent or received on an open connection to prevent stalling during large downloads
    • Fix for outgoing data corruption
    • Force application to wait while writing data
    • Better TCP window handling
    • Other minor changes, add examples
    Changes - Technical Summary:

    The first changes introduced added some new functionality, geared towards a software driven IP stack.  With the addition of additional processing and the Ethernet.update() function, the IP stack is more responsive to ICMP requests etc.

    The new examples included with my branch of the library clearly demonstrate some of the issues I encountered when attempting to create a simple web client and/or web server. The first issue I noticed involved the device crashing or stalling, and then failing to reconnect or respond to pings. Testing indicated that the hardware itself was still responding and receving packets, so the issue seemed to be software based. These issues mostly seem to be addressed in the fix_errata12 branch, but testing via large dowloads from a web server indicated there were still some remaining issues, mostly surrounding data corruption and flow control.

    Most of the remaining changes attempt to address issues with corrupted or out of sequence data, and to manage the flow of data better. In some situations, for example, web servers will send TCP payloads equal in size to 1/2 of the TCP Max Segment Size (MSS) which causes problems with flow control. The IP stack will now only close the TCP window if data is being received fast enought to do so, which appears to reduce issues with these transfers. The main issues come when a sending device sends only 1/2 MSS, and the recipient closes the window. The library will now count individual bytes in memory vs packets with data in them, and only close the TCP window if the assigned data buffers are completely full.

    Testing has been very successful, with the device demonstrating full functionality for extended periods of time, downloading 70+MB of data without any errors detected in the data or hardware. The new web server examples and HttpClientTest.ino example seem to be good displays of the current capabilities and error free operation, and can be used to demonstrate the issues, when used with the original library code, or when changes are reverted.

    The mini ENC28J60 modules are an inexpensive and effective way to add internet connectivity to any Arduino project, and their size make them very suitable for use with Arduino.

    I found the hardware itself to be very reliable and easy to use, although there seemed to be a few minor issues with the related Arduino library (UIPEthernet) that was tested.
    As noted, I have submitted some workarounds/fixes for review and possible integration into the main library at the time of this post, so users are encouraged to use the library linked above.


    A big thank you to www.ICStation.com for sending me this product, as well as being very patient.

    It has been a number of months since I actually received it, but their small contribution has lead to the creation of the RF24Ethernet TCP/IP Radio Network library, and some potential improvements to the UIPEthernet library. A wealth of Arduino and Raspberry Pi related products, gizmos and devices are available on their website, and their staff seem very friendly.

    RF24Ethernet - For DIY Internet of Things and Home Sensor Networks
    Adding internet connectivity to RF24Networks using nrf24l01+ modules as ethernet cards

    RF24Ethernet, What is it and how does it work?

    For anybody not familiar with my blog, I have done a lot of recent work in improving the radio driver and related network library for NRF24L01+ radio modules, using Arduino and Raspberry Pi or using two or more Arduinos. These very inexpensive and feature-rich devices can be used to create your own home sensor network, with very little cost when compared to most available solutions.

    RF24Ethernet will allow you to use a Raspberry Pi or Arduino as the 'gateway' machine to your network, and lets you connect to your sensors directly, using any device that has a web-browser, whether it is an iPod, PC, etc. or your sensors can connect out to the internet for information.

    Current Libraries:
    RF24 - OSI Layer 2 radio driver for nrf24l01+ modules
    RF24Network - OSI Layer 3 network driver for RF24
    RF24Ethernet - OSI Layer 4 Protocol (TCP/IP) driver for RF24Network
    RF24Mesh - Mesh networking layer for RF24Network (Dynamic config and topology)

    How it works: (Updated)

    The RF24Ethernet library is currently in the testing phase, and uses the UIP TCP/IP stack.
    The library has been modelled after the Arduino Ethernet library, allowing users to create web enabled, wireless devices, without having to learn the RF24 or RF24Network APIs. The addition of a real protocol (TCP) on top of RF24Network provides a level of simplicity, consistency and reliability beyond what was previously possible.

    The IP address of each node needs to be statically assigned. Translation between RF24/RF24Network (MAC) addresses and IP addresses is handled in one of two ways, depending on the configuration. The default configuration uses ARP requests to find the correct node when TCP data is incoming, and users can optionally utilize RF24Mesh to provide MAC/IP translation and/or dynamic address assignment at the network layer.

    Configuration/Testing: (Updated)

    Configuration is now integrated directly into RF24Ethernet, with the RF24Network address specified as the MAC address, and this can be further automated by utilizing the RF24Mesh layer along with RF24Ethernet. Users have the option of creating a static network, or utilizing RF24Mesh to create a dynamic network with nodes capable of moving around physically or utilizing fail-over nodes. The RF24toTUN application running on a Raspberry Pi automatically performs discovery and routing for incoming TCP/IP data, so users only have to configure static IP addresses, and a unique identifier for each node when used with RF24Mesh.

    Setup (Arduino & RPi):
      Install RF24, RF24Network, RF24Mesh & RF24toTUN libraries
      Note: RF24toTUN requires the boost libraries. Run sudo apt-get install libboost1.50-all
      a: wget http://tmrh20.github.io/RF24Installer/RPi/install.sh
      b: chmod +x install.sh
      c: ./install.sh  (Note: This should be run without sudo or all your base files will belong to root)
     a:  Install RF24 lib
      c: Install RF24Ethernet library
      d: If using with a RPi, run any of the Getting_Started examples. You should be able to ping and connect to the remote Arduino.
      e: If using with a SLIP interface (non-RPi) :
          1. Run the  SLIP_Gateway.ino example on the Arduino connected to the PC/MAC etc
          2. Run the SLIP_InteractiveServer.ino example on another Arduino.
          3. Once the SLIP interface is configured as per the examples, you should be able to ping and connect to the remote Arduino.

     RF24Ethernet - Setup, config and demo
    The initial proof of concept interface borrowed directly from the SerialIP library, using the uIP TCP/IP stack and uIP proto-sockets/proto-threads. Since testing was very succesful, the library has been developed to provide a simpler user interface, very similar to the Arduino Ethernet library. In its current form, a node running RF24Ethernet can act as a standard TCP server, and can function as a telnet or web server, by modifying the included example.

    How can this be used?

    The possibilities from here are virtually endless, with very inexpensive sensor networks being provided with direct TCP/IP connectivity. One of the more obvious applications involves simple retrieval of information from network or internet sources, such as the time or the current weather. Controlling a connected LED or other attached device can be as simple as opening a bookmark in your browser.
    To take things a whole lot further, this could even allow RF24Network to be utilized as a bridge betwen LANs, using sensor networks for emergency commuinications etc, when main connections are down. Testing shows that speeds  across the network are slightly better than or equivalent to a dial-up connection, so it seems to provide a practical solution for low-speed data transfers like sensor data, text-based email or chat.

    Results of Testing:

    The above picture presents an idea of the latency, etc when sending ping requests of varying sizes from the RPi master node to a connected sensor node.

    Documentation/Further Development?
    See http://tmrh20.github.io/RF24Ethernet for available documentation.

    Update Nov24:
    Working with UIP TCP/IP stack has been a bit of a challenge to say the least, but things seem to be coming along nicely. The RF24toTUN library has been updated to route payloads according to the radio MAC address, so integration with RF24Network is coming along nicely. Support for the RPi to send fragmented multicast payloads has been added, so ARP requests are working nicely within RF24Network. This will allow full integration with RF24Mesh, to create a dynamic TCP/IP mesh sensor network if desired, with very little to no configuration needed by the user. I've commited the current code to a new branch (master_dev) to hold the new code until it is cleaned up and more functionality is added. Currently, it only supports incoming data connections as a simple server, and ICMP packets.

    Update Nov30:
    The Server and Client API to match the official Ethernet library is now in place and working for the most part. DHCP, DNS lookups and UDP in generall is not developed yet. There are still some bugs and oddities to work out, but overall, the TCP server and client seem to perform fairly well given the circumstances. Web client and server examples have been included.

    Update Dec 7:
    The library seems to be working very well now, and the API is about 95% complete. Most bugs have been addressed, with only a few minor issues left, generally surrounding timeouts during very large data transfers. The existing examples have been updated, and some new examples have been added, demonstrating a simple web server and interaction with a sensor node via a web browser. Some documentation has also been created and is linked below.

    Update Dec9:
    RF24Mesh has been integrated with RF24toTUN, to provide automated addressing and mesh support for RF24Ethernet. When building RF24toTUN, use 'sudo make install MESH=1' to compile with RF24Mesh support. If using with RF24Ethernet, see the new SimpleServer_Mesh.ino example for usage. An install script has also been created for RPi, to simplify installation of the various libraries.

    Update Dec 14:
    Updated RF24Ethernet to support SLIP or TUN devices as well. This requires RF24Mesh to perform MAC/IP translation. Two new examples have been added, SLIP_Gateway.ino demonstrates how an Arduino can act as a simple USB interface to any device that supports SLIP. SLIP_InteractiveServer demonstrates how to use RF24Ethernet and RF24Mesh with a SLIP or TUN interface.

    Update Dec 28:
    Modified the MAC address format due to issues with standards when using it on RPi/Linux. Modified the timing of uip restarts. Updated RF24toTUN to provide cmd line configuration for all major options including node addressing. Fixes and updates to RF24Network and RF24toTUN seem to have addressed some buggy behaviour.

    Update Dec 30:
    Todays latest updates should be applied along with the latest updates to RF24toTUN and RF24Network. The main change fixes corrupt client requests, which would have been noticed when establishing outgoing connections. The remaining changes revolve around reliability, the order of operations, and the timing of things, and seem to really bring RF24Ethernet closer to a stable, reliable library.
    Update Jan 2, 2015
    This round of updates comes after a very long round of testing and coding. The RF24 library has been updated to provide even better timing, reliability and throughput. Changes to RF24Network improve fragmentation/reassembly. RF24toTUN has been updated to fully support all 3 datarates, and throughput has been improved for all speeds. RF24Ethernet has been updated to provide a timeout for connections, part of better handling for TCP window reopening and failures, and allows users to configure the periodic timer via uip-conf.h to provide faster transfers. These changes bring RF24Ethernet a lot closer to a stable release. Testing shows that these updates provide easily noticeable increases in reliability and speed at all levels, and updating all the mentioned libraries is recommended.

    Update Jan 4, 2015
    Added connection timeouts to recover from hangs during failed client donwloads, which adds improved reliability to the library. Added better TCP window management to prevent those hangs during client downloads, along with configuration options. Documentation updated to include new features and options.

    Update Jan 16, 2015
    Updated to v1.2b - Adds UDP and DNS support along with a pile of fixes and updates. Users should update RF24Network and RF24toTUN along with RF24Ethernet. This will be the final update to this blog post. See the documenation below or check back here at tmrh20.blogspot.com for additional posts.

    See https://github.com/TMRh20 for all related code/library downloads, and http://tmrh20.github.io/RF24Ethernet for available documentation.

    RF24Network Arduino/RPi Library - A New Development

    What is RF24Network?

    It is a library built upon the core RF24 driver for nrf24l01 radio modules that attempts to provide a simple interface for connecting anywhere from a few, to hundreds of wireless radio modules, connected to Arduino or Raspberry Pi devices. Uses don't need to know every detail of the radio modules in order to setup and operate a network of them. The library handles configuration, addressing, interconnections, and routing, so users can focus on creating household or long distance radio sensor networks, with data being routed automatically through the network to its intended destination.

    Whats New?

    I've been doing quite a bit of work on the core RF24 radio driver, including a wide range of changes and updates, and wanted to test out some of the more interesting features of the modules on a large scale. The existing network layer (originally by ManiacBug) provided a great foundation to begin, as it contained all of the required features of an RF24 radio network, and used a system of routing and addressing that is well suited to small devices like Arduino or ATTiny.
    Some of the new features may seem unnecessary or overkill, and some will probably be, but others will support scenarios just not possible in the previous configuration. I've created a development repository and associated documentation that will be kept up roughly in accordance with development, since it will all take time to test fully, but it seems to work well and some of the features are pretty interesting.

    Updated 12/14:
    RF24Network now supports fragmentation for all devices, including via multicasting and is enabled for all devices except ATTiny by default. The library is fairly stable at this point, and testing is ongoing with RF24Ethernet and RF24Mesh.

    Updated 10/14:
    Fragmentation support was recently added for the RPi and Arduino Due. Standard AVR devices (Arduino Uno etc) are able to send large, fragmented payloads, but cannot yet reassemble them. See below to enable. Usage is exactly the same, but any very long payload lengths will be accepted.

     Routing changes have been partially reverted to use a limited number of retries (auto-ack) where possible, and function similarly to the master branch, although network ACKs are still utilized.

    Some defaults have been changed:
    • Multicasting is enabled by default. This limits the number of normal child nodes/parent to 4.
    • Fragmentation is totally disabled by default on AVR devices
    • Uncomment defines in RF24Network_config.h to disable/enable these options


    Fragmentation and reassembly support is enabled by default, with a maximum payload size of 120 bytes. Users can configure the memory buffers, or disable fragmentation by editing the config.h file. See here for the documenation. When enabled, data is sent as usual, and the network layer manages fragmenting and reassembling the data automatically.

    Addressing Formats:

    The development version currently uses a different addressing format, using specific addressing chosen for use in radio transmission. See the datasheet and this blog post for more information. Users simply specify an octal address (01-05) as before for example, and the radio addresses will be configured accordingly.

    Routing and Acknowledgement

    Previously, payloads that were routed over one or more nodes were not acknowledged, so the transmitting radio had no way of knowing if payloads were delivered. *New: In the development version, users have the ability to specify whether or not the network will respond with an ACK, simply by choosing from a range of message types. Typical user message types of  65 through 127 will be acknowledged, and message types 1 through 64 will not be acknowledged. There are a few benefits to this arrangement, since network acks can automatically help to prevent nodes from flooding the network with traffic, and no-acks can be used when a response is desired from the recipient etc.

    Direct Routing and Failovers

    Network frames can now be logically addressed to one node, and sent to any other node for routing. This allows some dynamic topology, and can also be used to reduce routed traffic on a network. See the documentation links below for specifics and limitations.


    A multicasting feature has also been added that allows, for example, the master node to send out a single network payload, and have it delivered to hundreds of network nodes very rapidly. Multicast relay nodes can be used to disperse messages throughout all or partial areas of the network. Multicasting is enabled by un-commenting #define RF24NetworkMulticast in the RF24Network_config.h file, since it requires additional program space and memory.

    Improved Performance

    Performance on the network will be similar, but users will see a much higher error rate using the development version, as it gives a real indication of success or failure of payloads. Data throughput should be increased in most cases, due to reduced retry periods, and the new routing protocol.

    Additional Technical Details and Information:

    Documentation for the development version can be found here, and should be kept pretty consistent with changes. It contains information specific to the new routing and delivery protocols, as well as updated class documentation for usage.
    The development repo is found here, and it can be downloaded here. Features and functions found to be stable and beneficial are likely to be merged into the master branch eventually. The development branch should be relatively stable at any given time, but is in no way guaranteed to be.

    Arduino AVR Timers and Waveform Generation

    I've had a number of questions regarding Arduino timers and the generation of signals and waveforms, so here is (hopefully) a simple tutorial on using Arduino timers.

    This tutorial requires a basic understanding of the difference between bits and bytes, along what it means to read or write bits and bytes to AVR registers.

    Timers can be seen as additional components used to offload work from the processor. A timer running on its own can create a signal or waveform without any interaction from the CPU, allowing the CPU to do things like interact with the timer to modify the waveform or handle other tasks.

    The most basic function of a timer is to count from 0 to a specified number, lets say 255, and then start all over again and count from 0 to 255 again. Using a standard Arduino board running at 16 million cycles/second, the timer will count from 0 to 255 at a set frequency, which can be determined using a simple calculation:

    CPU Freq / TIMER TOP  =   Timer Frequency (cycles/second)
    16mHz     /         255          =   62,745 cycles/second  ( 62.75kHz )

    The UNO has both 8-bit timers (TIMER0, TIMER2) and a 16-bit timer (TIMER1) which can all be used to perform various functions. This means that timer0 and timer2 can handle or count in increments ranging from 0 to 255, and TIMER1 will handle values from 0 to 65,535.

    Timer Parameters & How to generate a signal:

    Timer TOP:
    Basic timer functionality is simple, we set a TOP value, and the timer will count from 0 to TOP, then start counting at 0 again.

    Timer COMPARE:
    Timers can also be set to toggle an output or trigger an interrupt when the timer value reaches a set value. Lets say the TOP value has been set to 255, the compare value is 127, and an LED is connected to pin 9 on an Arduino UNO. The following will take place:

    a: The timer will increment its value by 1 every 16-millionth of a second, starting at 0
    b: The LED stays lit until the counter value reaches 127, then is turned off.
    c: The LED turns back on once the counter value is reset to 0 (after reaching its defined TOP value)
    d: GoTo b:

    Result: This produces an approximately 50% duty cycle PWM signal at 62.75kHz

    Example Code:

    void setup(){

       //This sets the timer1 mode, prescaler and enables timer PWM output on Uno pin 9 (not covered in this tutorial)
        TCCR1A = _BV(WGM11) | _BV(COM1A1);
        TCCR1B = _BV(WGM13) | _BV(WGM12) | _BV(CS10);

        //This sets the TOP value, or the value that the timer will count up to before resetting to 0
        ICR1 = 255;
       // This sets the OUTPUT COMPARE value A ( Compare A for pin 9, Compare B is linked to pin 10)
       OCR1A = 127;


    Changing the Duty Cycle (how long the pin output is HIGH vs LOW):

    Changing the duty cycle is as simple as changing the value of the OCR1A register. Since these examples use timer1, 16-bit (0-65535) values could be used, but since the TOP value is set at 255, only those values can be used for this demonstration.

    Example Code (Uses the above setup() code) :

    void loop(){
        OCR1A = OCR1A + 1;
        if(OCR1A == 255){
             OCR1A = 0;

    Result: The example above will increment the duty cycle by 1/255 (0.4%) every 15 milliseconds until it has reached 100%, then it will reset to 0 and continue to increment. A connected LED will be seen to get brighter and brighter until the timer compare register reaches the TOP value, and the duty cycle (OCR1A) will be reset to 0.

    Changing the Frequency:

    To change the frequency, simply adjust the timer TOP value in the above example code:
    ICR1 = 30000;

    Calculation:  16,000,000 / 30000 = 533.33... HZ (cycles/second)

    Note: The compare register (OCR1A) can be set to any value between 0 and 30,000 in this example.


    The frequency can be made lower by adjusting the prescaler. The system clock signal will be divided by the prescaler before being made available to the timer. This is not required to be understood for this tutorial.

    Calculation: CPU Freq. / Pre-Scaler / TIMER TOP = frequency

    Basic Theory of Creating Audio:

    One of the simplest and most common forms of uncompressed audio is the WAV or PCM format. PCM stands for Pulse-Code-Modulation, which can be replicated using the Arduino timers, and the information provided above.

    In the case of recording 8-bit audio, the voltage of an audio signal is converted to a number ranging from 0 to 255. The higher the voltage, the higher the number. This is done at a set frequency, say 16kHz or 16,000 times a second.

    Recreating an audio signal can get fairly complicated and in-depth, but basically just needs to meet the following requirements:

    1. Frequency of the timer generally should equal the frequency that the audio was sampled at (sample rate)
    2. Sample values need to be fed into the timer every cycle

    To create audio of 16khz sample rate, the timer needs to run at 16,000 cycles/second, and a new sample value needs to be fed into the timer every time it reaches its TOP value (every 62.5 microseconds) This generally requires the use of interrupts, which is out of the scope of this tutorial.

    The above example code can be used to create simple audio tones by varying the frequency from 0 to about 10,000 hz max, and volume controlled by adjusting the duty cycle.


    This overview is intended to cover very basic timer usage in Fast PWM mode via TIMER1. Additional timers, modes, details, usage, etc can be determined by referencing the datasheet, which is really the best reference for any kind of advanced timer usage. All of the timers are accessed in very similar ways, but some settings like prescaling are different between timers.

    RF24Audio Library Released:
     Wireless Digital Audio Streaming and more with Arduino and NRF24L01 modules

      Its been a little while in the making, but I am finally releasing my RF24Audio library. The library offers a number of features, mainly the ability to wirelessly stream realtime data or audio captured from an analog input to one or more other devices. 'Other devices' can include Arduinos, PCs, or any other device capable of reading the data stream.
      Since the library utilizes the core RF24 radio library, advanced usage and customization can be configured, and allows interaction with audio devices in a number of different ways. The TMRpcm audio library (WAV audio from SD card) has been updated to support the RF24Audio library as well, being capable of multicasting audio to a number of devices. A demonstration of this interaction is shown in the following video:

      The library is designed to be very easy to setup and configure, just connect a radio module, microphone and speaker. External buttons are optional, and are managed internally by the library. This can be disabled to allow further customization via keypads, etc. Users can also utilize the core RF24 library to interact with the audio devices in a number of ways, including capturing audio streams and feeding the data to a PC.

    • User friendly setup and configuration: For beginners too: Just connect a radio module, microphone, and speaker. The library handles the rest.
    • Recording and broadcasting of audio to multiple devices using only Arduino, RF24 modules and input/output devices (speaker,microphone)
    • Multicast: Enables broadcasting to all nodes, single nodes, or partial groups of nodes
    • External controls: Use external buttons or code to control audio streaming
    • Volume control: Use external buttons or code to control audio volume on receiving devices.
    • Remote control: Start recording remotely via radio commands (Currently cannot stop remote recording)
    • LED Indicator/Visualization: Indicates audio playback and amplitude.
    • Customization: Using the underlying RF24 core library allows custom interaction with audio devices running this library. Receive audio data and stream it to a PC over USB, create and broadcast computer generated audio in realtime, and more! See the USB_Audio example for more info.
    • Create additional node groups: Allows nodes to join private broadcast groups, and multicast only within their group as desired

    Pin Assignments:
    • Speakers: Arduino Uno,Nano,etc: pins 9,10 Arduino Mega: 11,12 (Timer pins cannot be changed, but can use 1 pin and ground)
    • pin A0: Microphone/Input pin
    • pin A1: Transmission/Recording Start pin
    • pin A2: Volume Up
    • pin A3: Volume Down
    • pin A4: Trigger remote recording (Only working with dual devices)
    • Cannot be changed: LED Pin: Uno,Nano,etc: pin 6 Mega 2560: pin 13 (main LED pin)

    Library Documentation

    Source Code:
    RF24Audio Library
    RF24 Radio Library
    TMRpcm Audio Library

    Testing New RF24 Arduino Library Fork for NRF24L01 Radio Modules: Comparative Testing - Transfer Rates


    Per my previous blog posts, I have been working on some improvements to the RF24 radio library, and the main benefits of the changes have been realized. The following video compares the difference against the fork found at https://github.com/gcopeland/rf24. I did not compare against the main library since the gcopeland fork outperforms it quite a bit already.

    The new library, source code and documentation can be found at https://github.com/TMRh20/RF24. Info in previous blog posts.

    More to come...
